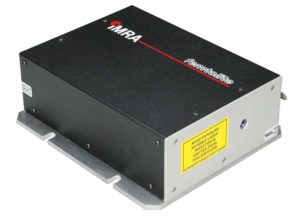

F / G / H Series

Compact Femtosecond Fiber Laser

Based on proprietary Raman-shifting technology, the F/G/H Series delivers pulses with a clean shape and spectrum at the unique wavelengths of 1620 and 810 nm.  The compact form of this series enables possibilities for the use of femtosecond lasers in clinical and industrial settings.  Target applications include multiphoton fluorescence microscopy, second harmonic imaging,  and Terahertz spectroscopy.

 Features:

  • HX-150 offers continuously adjustable power at dual wavelengths
  • Compact and robust design for easy integration
  • Mechanical reliability complies with MIL-STD-810F and IEC 60601-1 standards
  • Regulatory certifications available

Laser Specifications:

FX-100
FX-150
GX-200
HX-150
Center Wavelength 805 ± 15 nm 810 ± 15 nm 1620 ± 40 nm 810 ± 20 nm 1620 ± 40 nm
Average Power ≥ 100 mW ≥ 150 mW ≥ 200 mW ≥ 150 mW ≥ 200 mW
Pulse Duration ≤ 120 fs ≤ 140 fs ≤ 100 fs ≤ 140 fs ≤ 100 fs
Repetition Rate 75 ± 10  MHz
Dimensions (mm³) 230 x 193 x 76
